CURT 40017 Chrome Trailer Hitch Ball; 3;500 lbs; 1-7/8-Inch Diameter; 1 x 3-Inch Shank

---

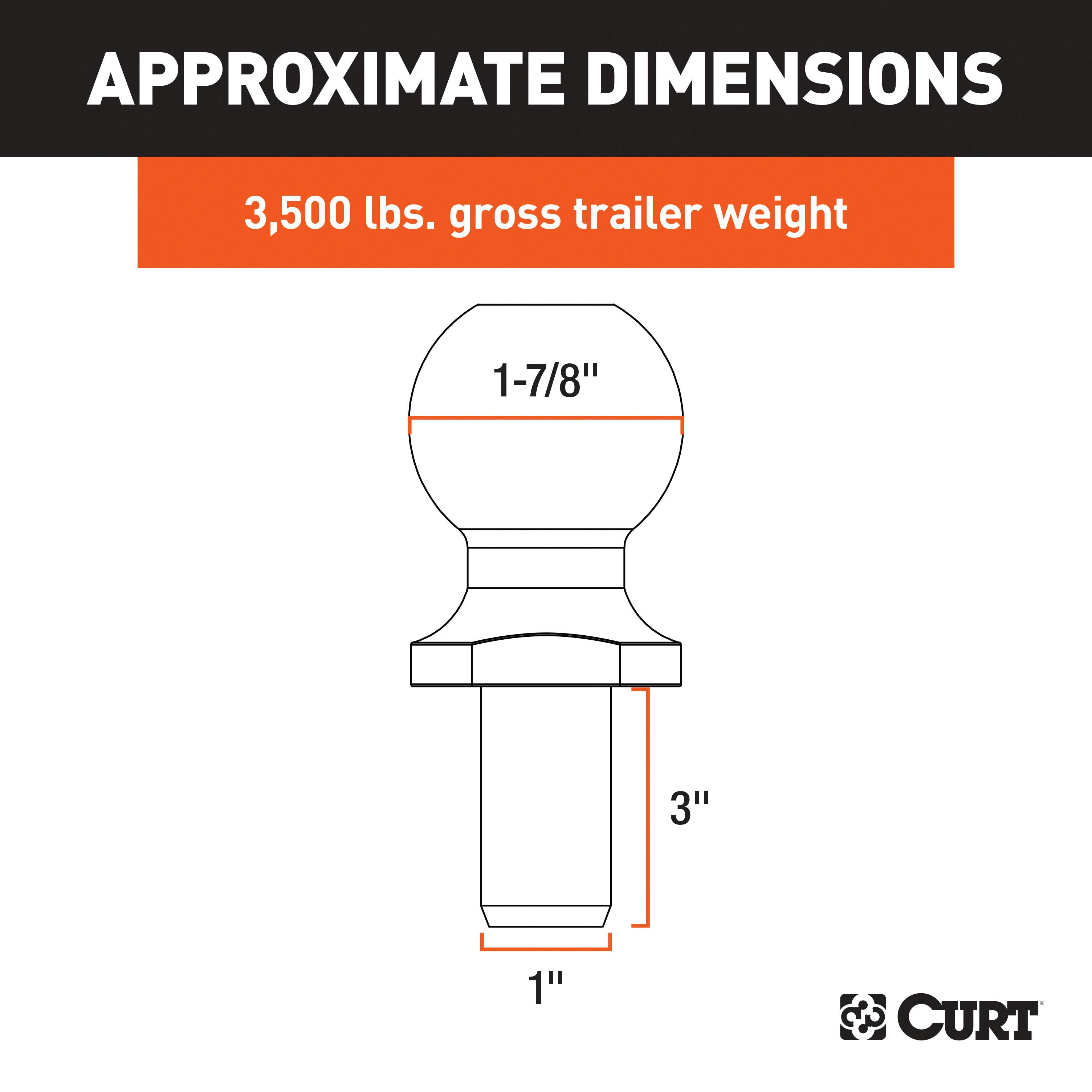

CURT 1-7/8 in. trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, we engineer our trailer balls to be precisely fitted. When we stamp 1-7/8 in. into the top of each hitch ball, we actually mean 1-7/8 in..This CURT tow ball features a ball capacity of 3,500 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 1 in. shank diameter, a 3 in. shank length, 0 in. of rise and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, our 1-7/8 in. balls are tested for your safety and meet all U.S. VESC specifications.

• Fits 1 7/8 In. Couplers And Accepts Up To 3500 Lbs. Tw
• Constructed From High-Strength Hot-Forged Steel
• Protected By A Durable Chrome-Plated Finish
• Zinc-Plated Hex Nut And Helical Lock Washer For Secure Mounting
• Features Fine Threads For Superior Holding Strength
• Tested For Safety To Meet U.S. Vesc V-5 Specifications

---

Information:

1-7/8 Trailer Ball (1 x 3 Shank, 3,500 lbs., Chrome); Fits 1-7/8 couplers and accepts up to 3,500 lbs. GTW; Constructed from high-strength, hot-forged steel; Protected by a durable chrome-plated finish; Zinc-plated hex nut and helical lock washer for secure mounting; Features fine threads for superior holding strength; Tested for safety to meet U.S. VESC V-5 specifications; Limited lifetime warranty (one-year finish, one-year parts)

---

Application Summary:

Year	Make/Model
CURT	40017 Chrome Trailer Hitch Ball, 3,500 lbs, 1-7/8-Inch Diameter, 1 x 3-Inch Shank
