CURT 45028 Class 1 Trailer Hitch Ball Mount; Fits 1-1/4-Inch Receiver; 2;000 lbs; 3/4-Inch Hole; 6-Inch Drop; 4-5/8-Inch Rise

---

CURT class 1 ball mounts are designed for a variety of lightweight towing applications. For basic utility trailers, canoe haulers and other light-duty trailers, a class 1 ball mount gets the job done. CURT class 1 ball mounts are designed to complement our class 1 trailer hitches and come in several different styles, offering a range of shank lengths and drop and rise options. A class 1 ball mount is typically used on compact cars, full-size cars, minivans and crossover SUVs, but it can be used on virtually any trailer hitch with a 1-1/4 in. x 1-1/4 in. receiver tube (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This class 1 ball mount features a gross trailer weight capacity of 2,000 lbs. and a tongue weight capacity of 200 lbs. It has a length of 5-9/16 in., a drop of 6 in. and a rise of 5-3/8 in.. CURT ball mounts, like our trailer hitches, are built to last. They are made from quality steel that is CNC-formed and robotically welded to be an exact fit for your receiver hitch. To protect our class 1 ball mounts from corrosion, UV damage and scratches, we coat each one in a powder coat of high-gloss black for a sharp finish.

• Fits Trailer Hitches w/A 1 1/4 In. X 1 1/4 In. Receiver Tube
• Equipped w/A 3/4 In. Hole To Accept A Trailer Ball Shank

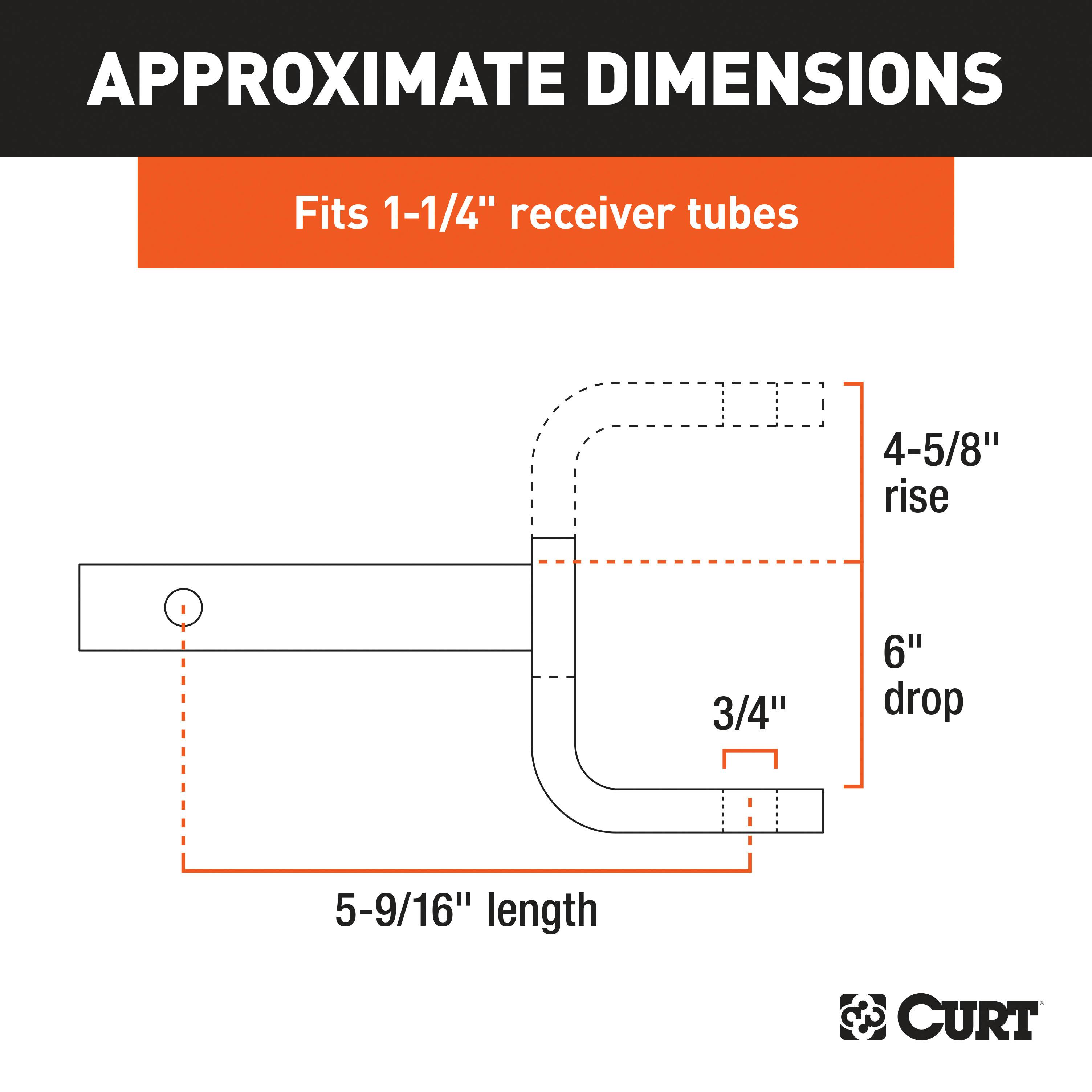

• 4 5/8 In. Rise Or 6 In. Drop For Precise Trailer Leveling
• Shank Constructed From Solid Steel For Optimum Strength
• CNC-Formed Robotically Welded And Mechanically Descaled
• Protected By A Durable Powder Coat Finish
• Made In USA

---

Information:

Class 1 Ball Mount (1-1/4 Shank, 2,000 lbs., 6 Drop, 5-9/16 Long); Fits trailer hitches with a 1-1/4 x 1-1/4 receiver tube opening; Equipped with a 3/4 hole to accept a trailer ball shank; 4-5/8 rise or 6 drop for precise trailer leveling; Shank constructed from solid steel for optimum strength; CNC-formed, robotically welded and mechanically descaled for a perfect fit; Protected by a durable powder coat finish; Made in USA; Limited lifetime warranty (one-year finish, one-year parts)

---

Application Summary:

Year	Make/Model
CURT	45028 Class 1 Trailer Hitch Ball Mount, Fits 1-1/4-Inch Receiver, 2,000 lbs, 3/4-Inch Hole, 6-Inch Drop, 4-5/8-Inch Rise
