CURT 48630 Raw Steel Adjustable Pintle Hitch Lunette Ring 3-In ID; 12;000 lbs; 7-1/2-Inch Channel Height

---

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This channel-mount lunette eye kit allows for secure coupling to a pintle hook or ball and pintle combination and features three height adjustment positions for easy height adjustment and trailer levelling. It features a forged steel construction and boasts a gross trailer weight capacity of 12,000 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a 3 in. inside diameter, this lunette ring fits a variety of CURT pintle hooks and ball and pintle combinations.

• 3 In. I.D. Fits Pintle Combinations Or Clevis Bars
• Three-Position Height Adj. Allows For Precise Trailer Leveling
• 2 In. Bolt Pattern Spread For Simple Secure Attachment
• Constructed From Forged Steel For Superior Strength
• Channel Bracket Features One-Piece Formed Steel Construction

---

Information:

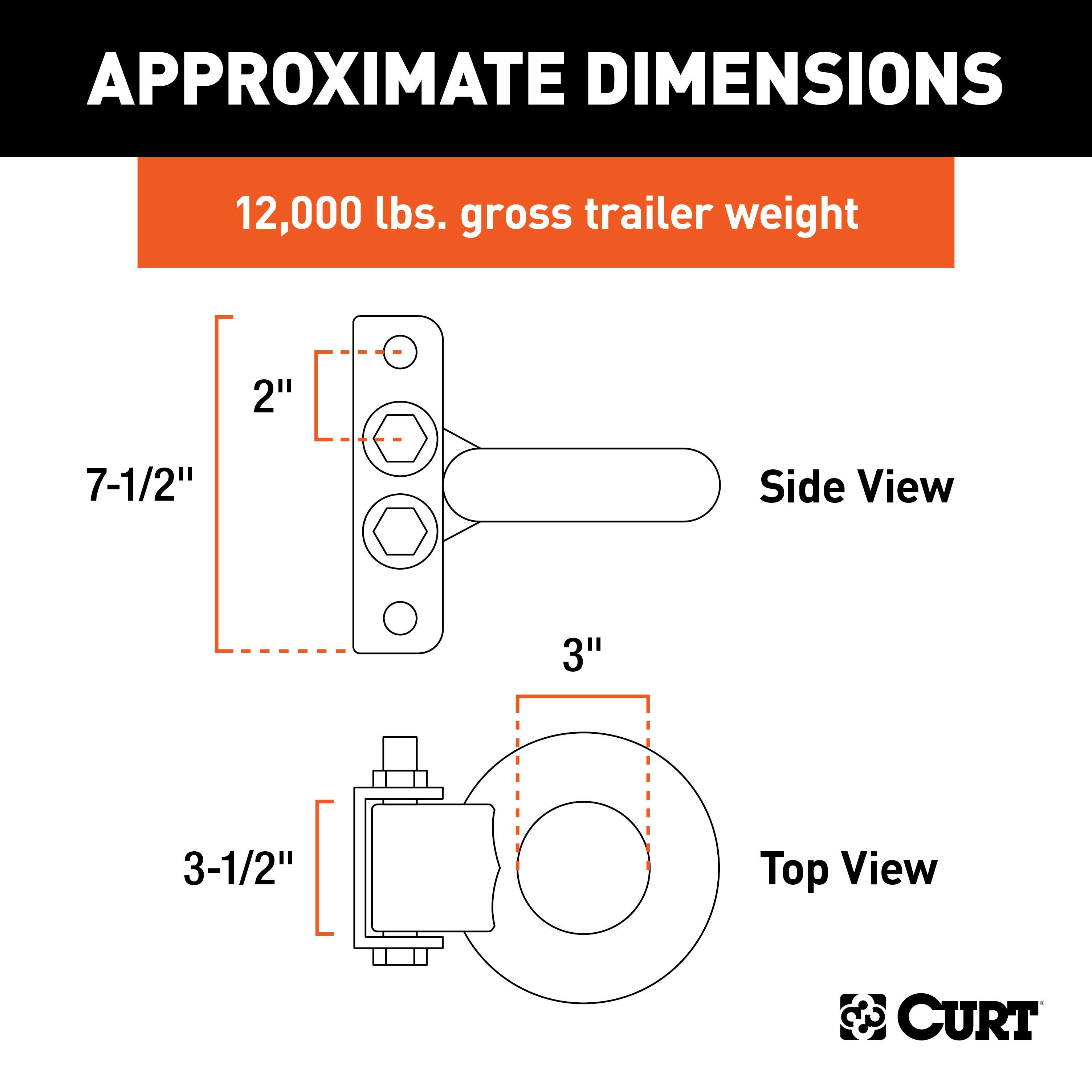

Adjustable Lunette Ring (12,000 lbs., 3 Eye, 7-1/2 Channel Height, Packaged); 3 inside diameter fits pintle hooks, ball & pintle combinations or clevis bars; Three-position height adjustment allows for precise trailer leveling; 2 bolt pattern spread for simple, secure attachment; Constructed from forged steel for superior strength; 7-1/2 x 3 channel bracket features one-piece, formed steel construction; Limited lifetime warranty (one-year finish, one-year parts)

---

Application Summary:

Year	Make/Model
CURT	48630 Raw Steel Adjustable Pintle Hitch Lunette Ring 3-In ID, 12,000 lbs, 7-1/2-Inch Channel Height
