CURT 60663 Multi-Fit OEM Puck System Gooseneck Ball with 4in. Offset; Fits Select Chevrolet; Ford; GMC; Nissan; Ram Trucks
Prepare your truck for reliable gooseneck towing while maintaining flexibility with the CURT universal OEM puck system gooseneck ball with 4" offset. This patented trailer ball ensures a hassle-free drop-in installation and grants an extra 4" of rearward offset, significantly enhancing the clearance between your truck bed and trailer. This advantage is particularly valuable for short-cab pickup trucks. The universal puck system is extensively tested and designed to handle demanding tasks, compatible with popular truck brands such as Chevrolet, Ford, GMC, Nissan, and Ram, as well as CURT OEM-style gooseneck hitches. Engineered to seamlessly accommodate hardworking pickup trucks, the CURT universal OEM puck system gooseneck ball with 4” offset incorporates a patented quarter-turn installation mechanism. This allows for quick insertion of the ball into the gooseneck hitch when required, allowing full functionality of the truck bed when needed. When it's time to free up the bed for other towing or cargo purposes, simply lift the lever and twist a quarter-turn to unlock the retention balls. This enables effortless removal and convenient storage. With a towing capacity of up to 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, this kit is constructed from forged and machined steel alloy, providing reliable strength for handling even the largest gooseneck trailers. It's important to note that these weight ratings are limited by the lowest-rated component in the entire towing system, including the vehicle itself. The kit includes a 2-5/16" diameter ball designed to fit 2-5/16" gooseneck couplers, and there's an available option of a 3" gooseneck ball #60628. Both of these gooseneck balls are compatible with the truck bed puck system found on Chevy, Ford, GMC, Nissan, and Ram trucks equipped with the towing prep package, as well as CURT OEM-style gooseneck hitches.
- Provides Extra 4 In. Of Rearward Offset For Improved Turning And Clearance
- Tested For Safety In Accordance With SAE J2638
- Limited Lifetime Warranty/One-Year Finish/One-Year Parts
- Rated For Up To 30000 Lbs. Gross Trailer Weight And 7500 Lbs. Vertical Load
- Quarter Turn Anchoring System Provides Quick Installation And Removal
- Anti Rotation Arms Provide Stability And Eliminate Chucking Between Frame And Pucks
- All In One Solution With Integrated Safety Chains Holders
- Adjustable Anchors Eliminate Chucking Between Frame And Pucks

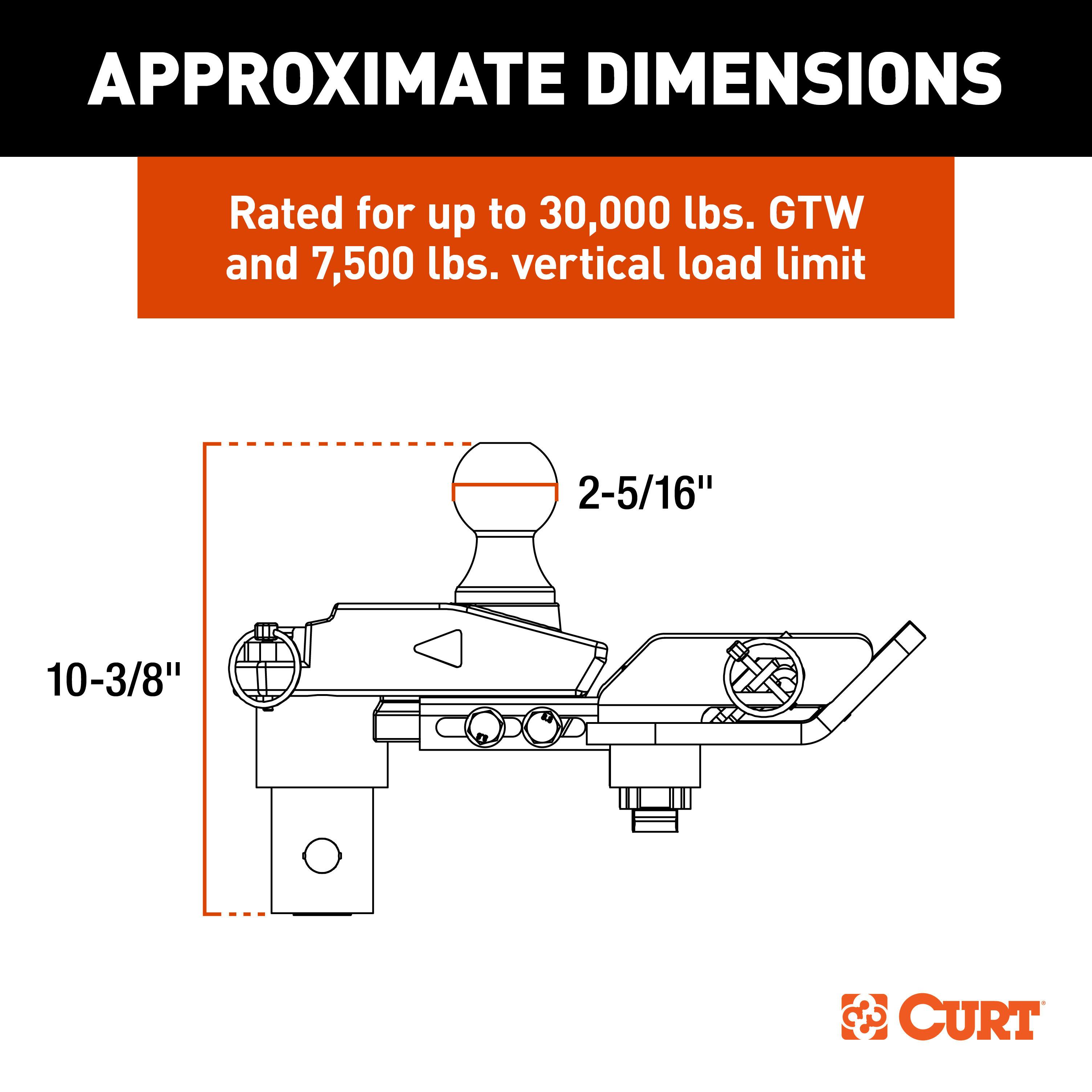

- Includes Standard 2-5/16 In. Diameter Gooseneck Ball With 4 In. Rearward Offset
- Forged And Machined Steel Gooseneck Ball With Chrome-Plated Finish
- Frame Protected By A Highly Durable Carbide Black Powder Coat Finish
Information:
All-in-one solution with integrated safety chains holders
Application Summary:
| Year |
Make/Model |
| 2020-2025 |
Chevrolet Silverado 2500 HD |
| 2020-2025 |
Chevrolet Silverado 3500 HD |
| 2013-2025 |
Ford F-250 Super Duty |
| 2013-2025 |
Ford F-350 Super Duty |
| 2013-2024 |
Ford F-450 Super Duty |
| 2020-2025 |
GMC Sierra 2500 HD |
| 2020-2025 |
GMC Sierra 3500 HD |
| 2016-2024 |
Nissan TITAN XD |
| 2023-2025 |
Ram 2500 |
| 2023-2025 |
Ram 3500 |
| Attributes |
| Ball Diameter |
2-5/16 IN |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Container Cases Qty - XA |
240 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
10 |
| Container Type - XA |
20GP |
| Container Unit Qty - XA |
240 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight Lbs - XA |
16650 |
| Country of Origin (Primary) |
CN |
| Finish - XA |
Blank |
| GTIN |
00612314056293 |
| Gooseneck Hitch Type |
OEM Puck Kit |
| Gross Trailer Weight (GTW) |
30,000 LB |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Item Class - XA |
OBS |
| Item Height - XA |
5.700 |
| Item Length - XA |
38.600 |
| Item Width - XA |
18.100 |
| Life Cycle Status Code |
Available to Order |
| Master Case Height Inches - XA |
5.700 |
| Master Case ITF14 - XA |
612314056293 |
| Master Case Length Inches - XA |
38.600 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
54.400 |
| Master Case Width Inches - XA |
18.100 |
| Material - XA |
CAST STEEL |
| Mount Type Description - XA |
Not Applicable |
| NAFTA Preference Criterion Code |
B |
| Pallet Cases Per - XA |
30 |
| Pallet Cases Per Layer - XA |
2 |
| Pallet Layer of Cases - XA |
12 |
| Pallet Total Height Inches - XA |
74.500 |
| Pallet Total Weight Per - XA |
1665.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
53.400 |
| Rate Class - XA |
65.0 |
| Retail Height - XA |
5.700 |
| Retail Length - XA |
38.600 |
| Retail Width - XA |
18.100 |
| SDR Required Flag |
N |
| Sales Family Code - XA |
GOOSE |
| Sales Family Description - XA |
GOOSENECK |
| Sales Group Description - XA |
GOOSENECK HITCH HITCH |
| Shipping Weight - XA |
53.400 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
Yes |
| Truckload Cases Qty - XA |
300 |
| Truckload Pallets Qty - XA |
10 |
| Truckload Units Qty - XA |
300 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
16650 |
| Vertical Load Capacity |
7,500 LB |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
